Inside Groove Vernier Caliper with Chisel Edge Contacts |
|
|
Features : |
Thin chisel edge contacts are convenient to measure the narrow grooves in the hole. |
|
|
Specifications : |
|
Measuring Range |
Order No. |
Vernier reading |
Limit Error |

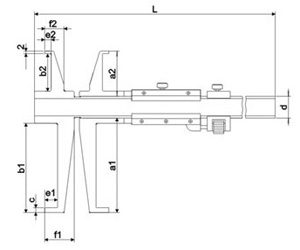

L |
a1 |
a2 |
b1 |
b2 |
c |
d |
e1 |
e2 |
f1 |
f2 |
|
15-125mm |
143-200A |
0.02mm |
±0.04mm |
230 |
73.5 |
35.2 |
70.5 |
31.5 |
2.9 |
16 |
5 |
4 |
17 |
11 |
|
18-150mm |
143-202A |
0.02mm |
±0.04mm |
258 |
73.5 |
35.2 |
69.5 |
31.2 |
3.8 |
17 |
10 |
5 |
23 |
15 |
|
|
