Product Show

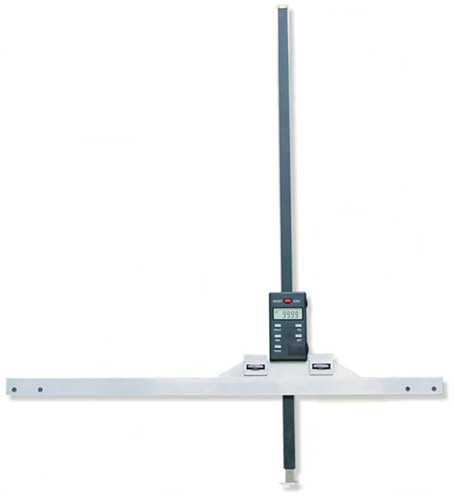

Digital Depth Gauges with Adjustable Extra Long Base
Inquire Now
Features :
Can measure the width of groove and position of groove.
The extra long base can be adjusted to the left and right.

  Specifications :
  Measuring Range Order No. Resolution Limit Error L
  0-300mm(0-12") 122-201 0.01mm(.0005") ±0.04mm 460
  0-400mm(0-16") 122-202 0.01mm(.0005") ±0.05mm 560
  0-500mm(0-20") 122-203 0.01mm(.0005") ±0.05mm 660
  0-600mm(0-24") 122-204 0.01mm(.0005") ±0.07mm 760
