Product Show

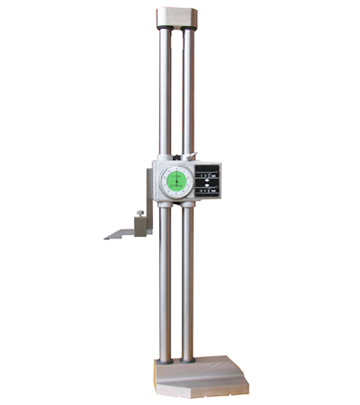

Twin-Beam Dial Height Gauges
Inquire Now
Features :
Easy reading dial.
Carbide-tipped scriber.
With fine adjustment wheel and lock
Stainless steel beams.
Bottom surface of the base is hardened, ground and lapped for maximum flatness.
  Specifications :
  Measuring Range Order No. Dial reading   Pernissible Error
      Graduation Range/rev.
  0-300mm 192-103 0.01mm 1mm ±0.04mm;
  0-500mm 192-105 0.01mm 1mm ±0.05mm;
  0-600mm 192-106 0.01mm 1mm ±0.06mm;
