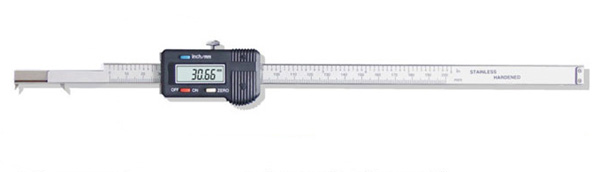

Hook Type Digital Calipers
Inquire Now
Features :
Measure the width of inside groove and position of a groove.
Zero-setting at any position.
Data output.

  Specifications :
  Measuring
Range		 Order No. Resolution Limit

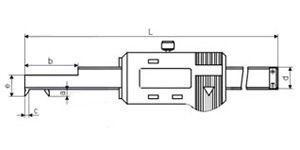

Error		 L a b c d e
  3-125mm(.2-5") 113-401 0.01mm(.0005") ±0.03mm 235  4  24  3  16 12
  3-200mm(.2-8") 113-402 0.01mm(.0005") ±0.03mm 310 4 24 3 16 12
  4-300mm(.2-12") 113-403 0.01mm(.0005") ±0.04mm 466 5 86 4 17 14
