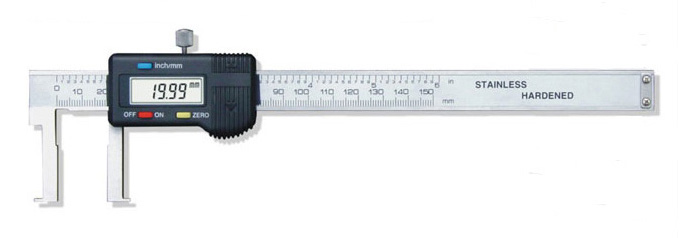

| Inside Groove Digital Calipers with Flat Points |
|
|
| Features : |
Can measure narrow grooves in a hole.
Special order requires the following data:
1.The diameter of the hole
2.The distance from the groove to the orifice
3.The width of the groove
4.The depth of each groove
5.The shape of the groove bottom |
|
| |
| Specifications : |
| |
Measuring
Range |
Order No. |
Resolution |
Limit
Error |

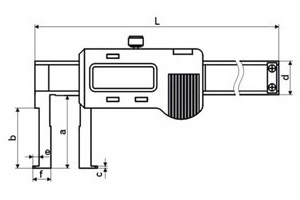

L |
a |
b |
c |
d |
e |
f |
| |
22-150mm |
113-201 |
0.01mm |
±0.04mm |
250 |
36 |
30 |
1 |
16 |
5 |
11 |
| |
35-150mm |
113-201-1 |
0.01mm |
±0.05mm |
250 |
66 |
60 |
1.5 |
16 |
6 |
17.5 |
| |
25-200mm |
113-202 |
0.01mm |
±0.04mm |
310 |
46 |
40 |
1 |
16 |
5 |
12.5 |
| |
40-200mm |
113-202-1 |
0.01mm |
±0.05mm |
310 |
76 |
70 |
1.5 |
16 |
7 |
20 |
| |
30-300mm |
113-203 |
0.01mm |
±0.05mm |
410 |
56 |
50 |
1.5 |
17 |
5 |
15 |
| |
50-300mm |
113-203-1 |
0.01mm |
±0.06mm |
410 |
68 |
80 |
1.5 |
17 |
8 |
25 |
| |
40-500mm |
113-205 |
0.01mm |
±0.06mm |
680 |
100 |
90 |
1.5 |
24 |
5 |
20 |
| |
60-500mm |
113-205-1 |
0.01mm |
±0.07mm |
680 |
130 |
102 |
2 |
24 |
10 |
30 |
| |
80-500mm |
113-205-2 |
0.01mm |
±0.07mm |
680 |
160 |
150 |
3 |
24 |
16 |
40 |
|
| |
