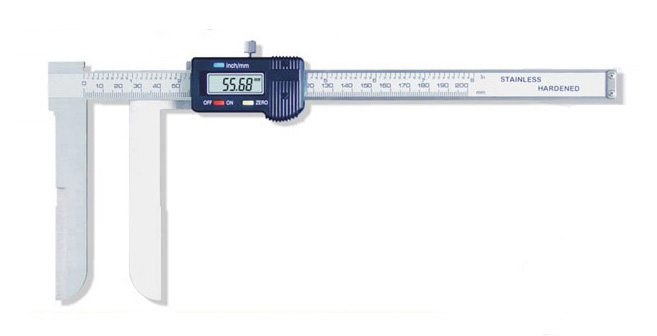

| Inside Digital Caliper With Long Knife-Edge Jaws |
|
|
| Features : |
Facilitate the measurement of the inside diameter of a deeper hole.
Zero-setting at any position.
Data output. |
|
| |
| Specifications : |
| |
Measuring
Range |
Order No. |
Resolution |
Limit
Error |

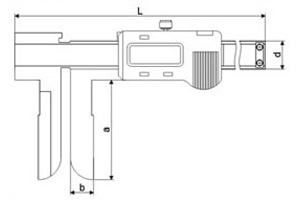

L |
a |
b |
d |
| |
15-150mm(.6-6") |
113-501 |
0.01mm(.0005") |
±0.03mm |
250 |
60 |
12 |
16 |
| |
20-150mm(.8-6") |
113-501-1 |
0.01mm(.0005") |
±0.04mm |
250 |
90 |
14 |
16 |
| |
25-150mm(1-6") |
113-501-2 |
0.01mm(.0005") |
±0.05mm |
250 |
150 |
22 |
24 |
| |
18-200mm(.7-8") |
113-502 |
0.01mm(.0005") |
±0.05mm |
305 |
75 |
14 |
16 |
| |
22-200mm(.9-8") |
113-502-1 |
0.01mm(.0005") |
±0.06mm |
305 |
100 |
17 |
16 |
| |
25-200mm(1-8") |
113-502-2 |
0.01mm(.0005") |
±0.07mm |
305 |
150 |
22 |
24 |
| |
20-300mm(.8-12") |
113-503 |
0.01mm(.0005") |
±0.05mm |
410 |
90 |
15 |
16 |
| |
22-300mm(.9-12") |
113-503-1 |
0.01mm(.0005") |
±0.06mm |
410 |
120 |
20 |
24 |
| |
25-300mm(1-12") |
113-503-2 |
0.01mm(.0005") |
±0.07mm |
410 |
150 |
22 |
24 |
| |
22-500mm(.9-20") |
113-505 |
0.01mm(.0005") |
±0.07mm |
700 |
100 |
20 |
24 |
| |
25-500mm(1-20") |
113-505-1 |
0.01mm(.0005") |
±0.08mm |
700 |
150 |
22 |
24 |
| |
35-500mm(1.4-20") |
113-505-2 |
0.01mm(.0005") |
±0.09mm |
700 |
200 |
30 |
24 |
|
| |
