Product Show

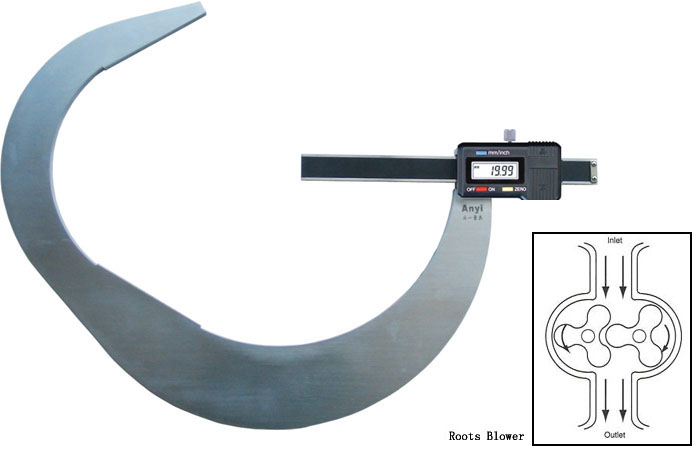

V-Anvil Digital Calipers
Inquire Now
Features :
Designed to measure the diameter of workpiece with odd flutes, such as end mills, taps, reamers and the like.
Used to measure shafts for lobe-error (out of roundness) .
Used to measure the diameter of workpiece formed with circular arrays, such as fan blades.
Used to measure the diameter of Roots Blower with 3 blades.
Easy to operate with high efficiency.
mm/inch conversion.
Zero-setting at any position.
With data output.

  Specifications :
  Measuring Range Order No. Resolution Limit Error
  3-50mm 118-601 0.01mm ±0.03mm
  50-100mm 118-602 0.01mm ±0.03mm
  100-150mm 118-603 0.01mm ±0.03mm
  150-200mm 118-604 0.01mm ±0.04mm
  200-250mm 118-605 0.01mm ±0.04mm
  250-300mm 118-606 0.01mm ±0.05mm
