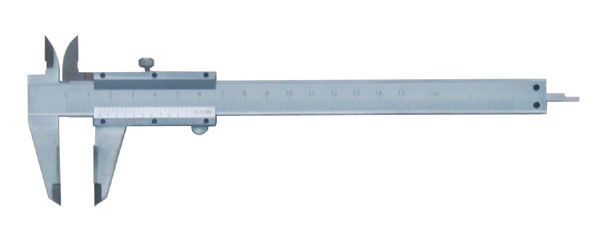

Carbide-tipped Vernier Calipers (Screwed Vernier)
Inquire Now
Features :
Carbide-tipped measuring faces, wear-resistant and long-life.
Can measure outside diameter (O.D), inside diameter (I.D), depth and steps.
Stainless steel, hardened throughout. Satin chrome finished vernier and main scale with jet black graduations for glare free reading. All graduations are marked by laser machine for accuracy.
With depth measuring bar.

  Specifications :
  Measuring
Range
Order No. Veriner
reading
Limit
Error

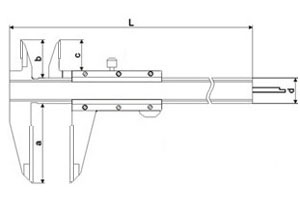

L a b c d
  0-150mm 141-251 0.02mm ±0.02mm 236 40 21 16.5 16
  0-200mm 141-252 0.02mm ±0.03mm 286 50 24 19.5 16
  0-300mm 141-253 0.02mm ±0.04mm 400 60 25 20.5 17
